Steam Trawl Winch

Part Number:

4320022

A 1:48 scale model of a typical steam trawl winch featuring turned brass and resin components.
Scale:
1:48
Length:
32mm
Width:
86mm
Height:
28mm
As well as a pair of turned brass warping drums, for auxiliary pulling/lifting power, this trawl winch features twin coil drums with independent forward/reverse and brake controls, all of which have allowed simultaneous control of both the port and starboard warp lines.
The roller fairlead assembly hangs on the upper shaft with a simulated roller bearing and is secured in place by the lower shaft; the assembly even features gear stops, which would limit sideways movement, preventing lead ropes being able to pass beyond the ends of the drum coils.
Buy This Product

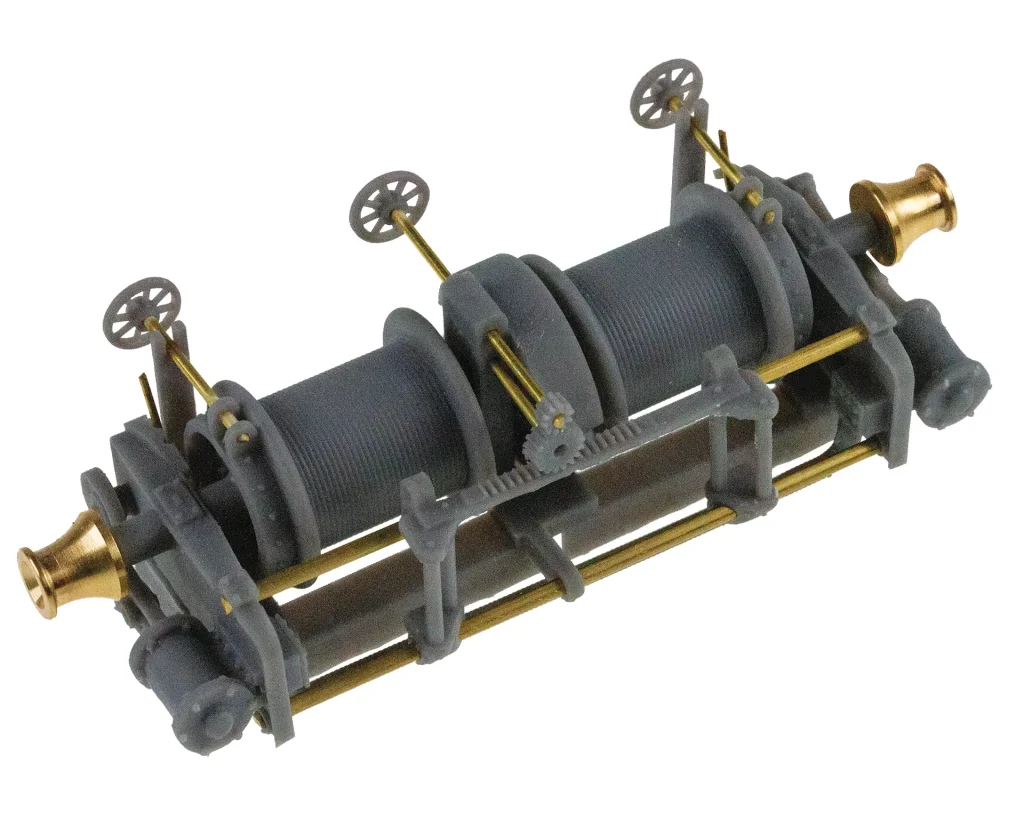

4320022 Product Photo

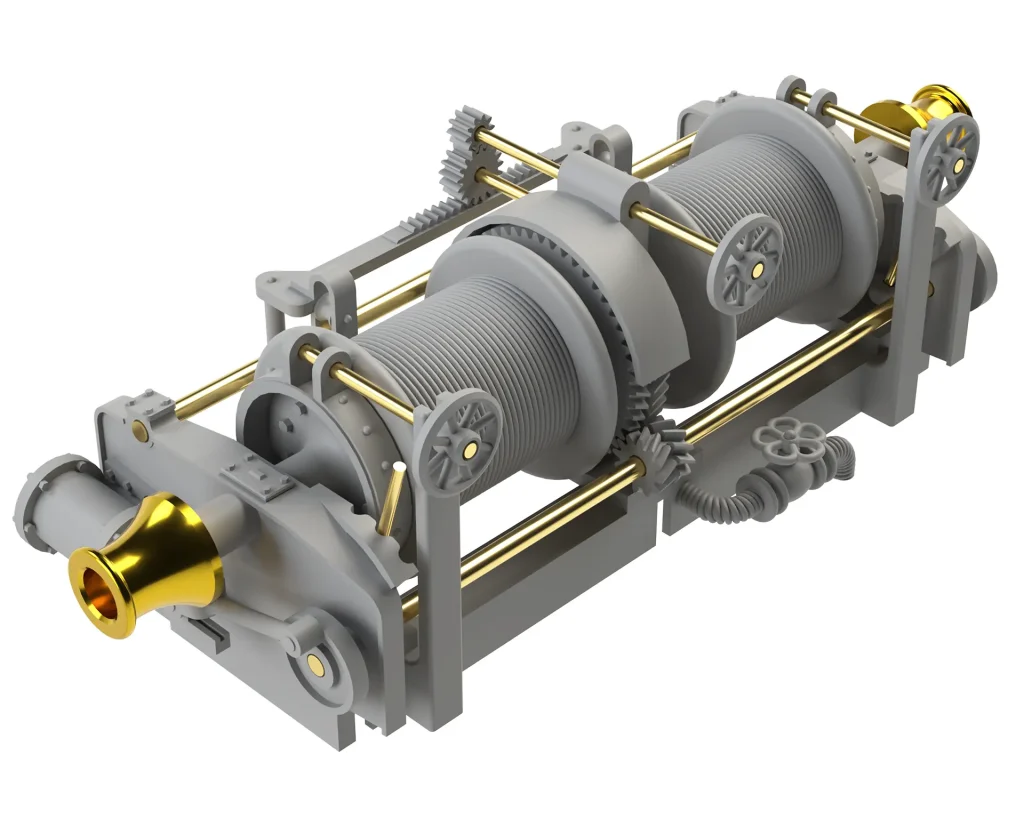

4320022 After Three-Quarter View

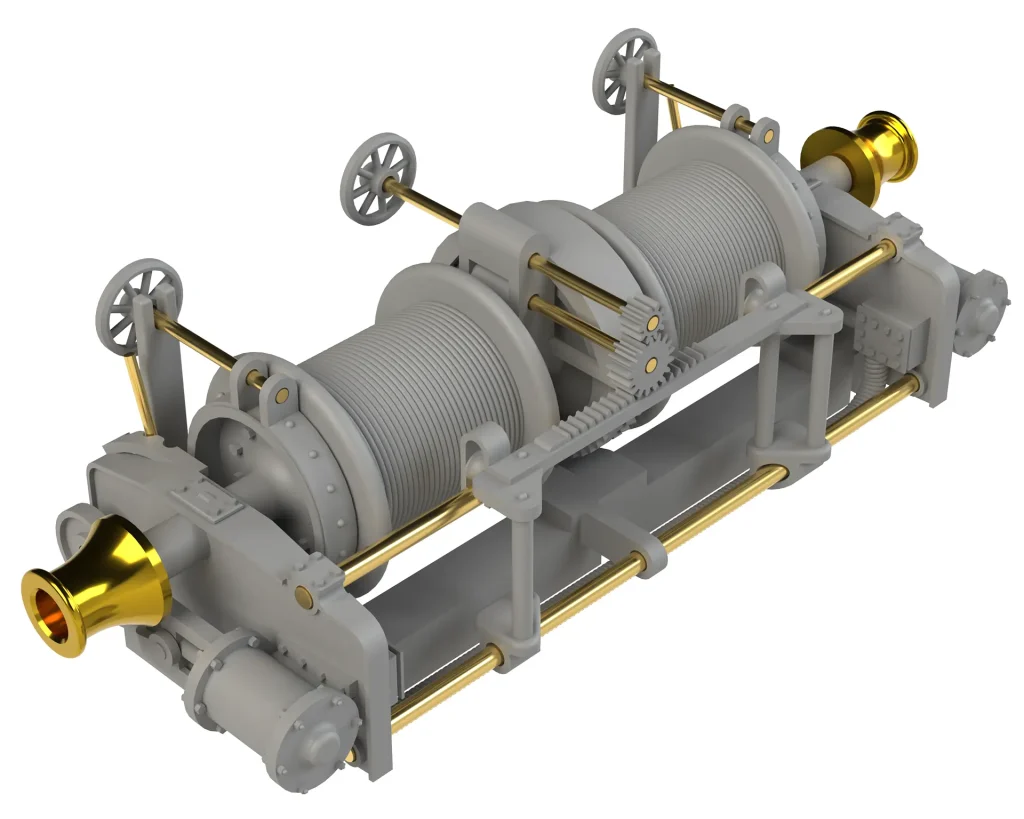

4320022 Forward Three-Quarter View

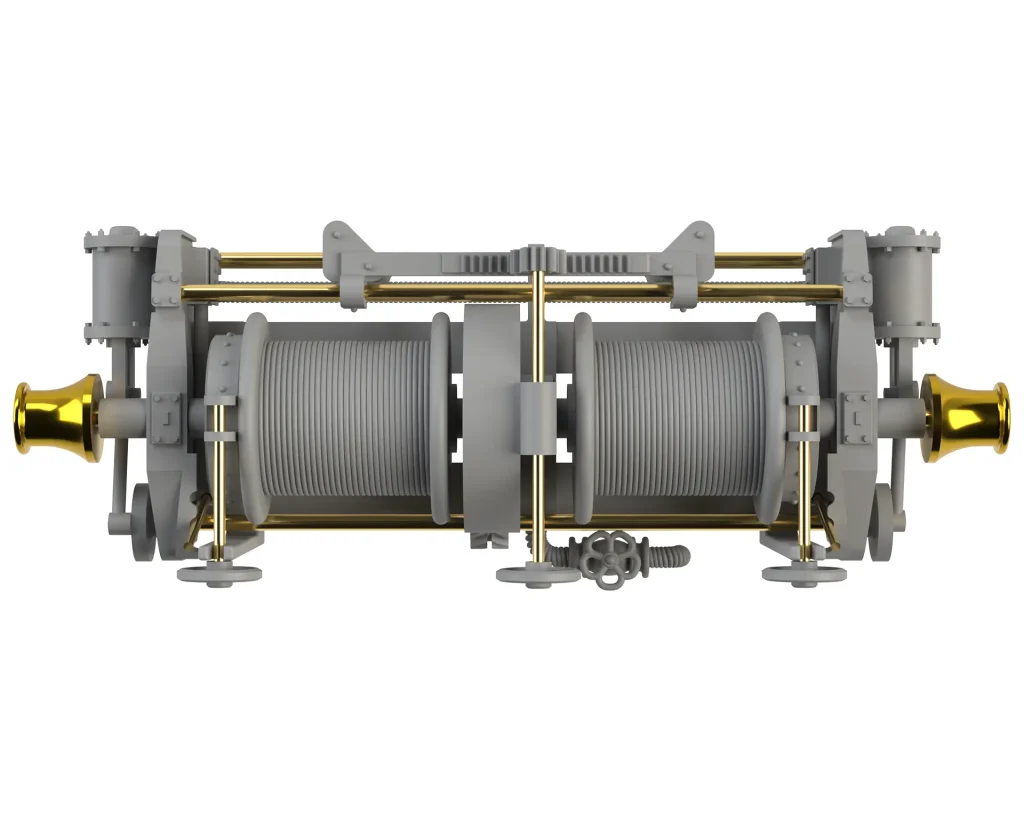

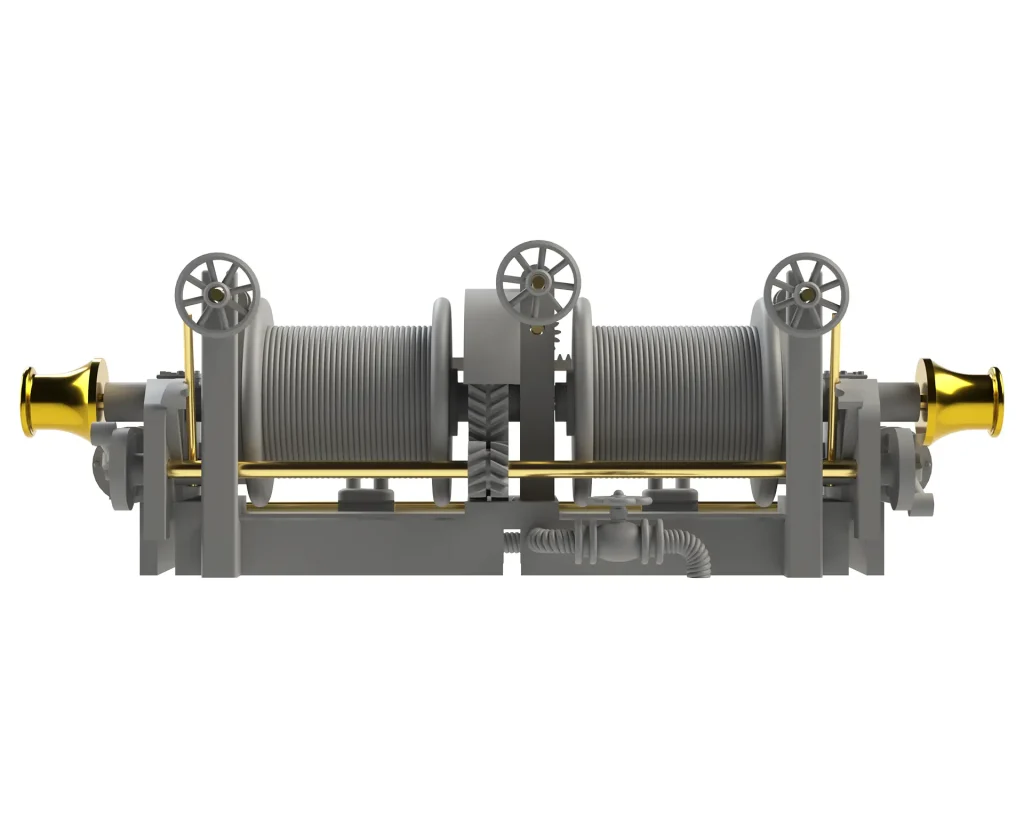

4320022 Plan View

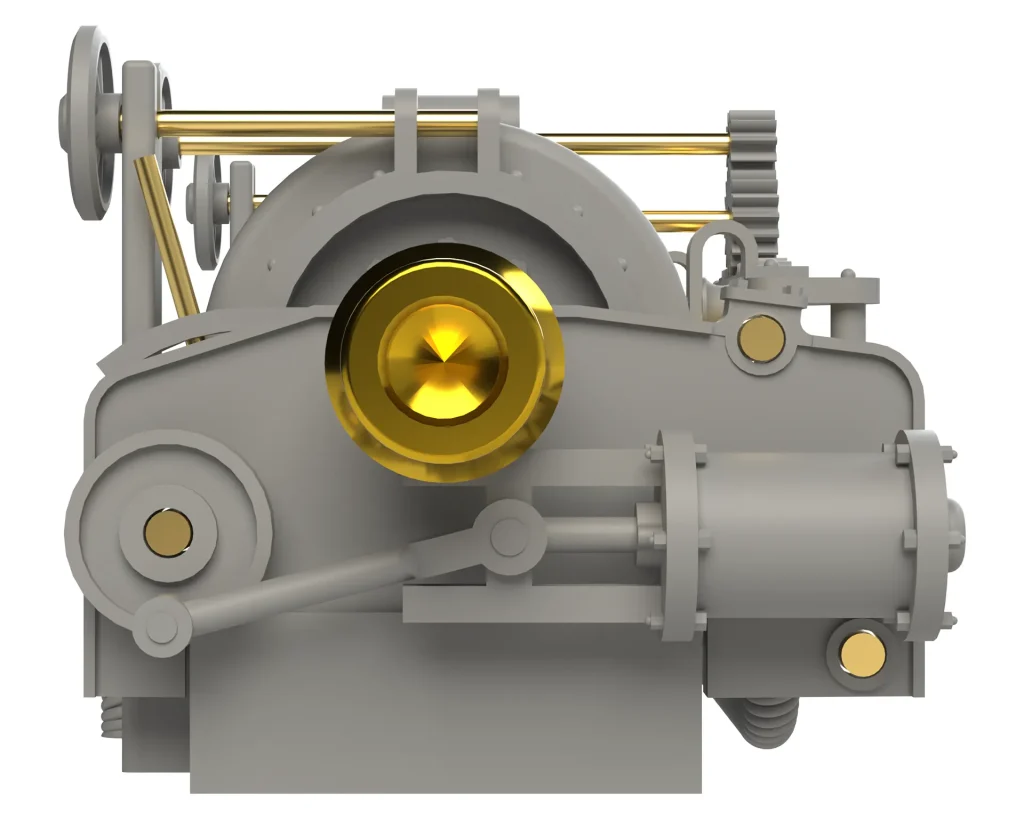

4320022 Forward View
4320022 After View

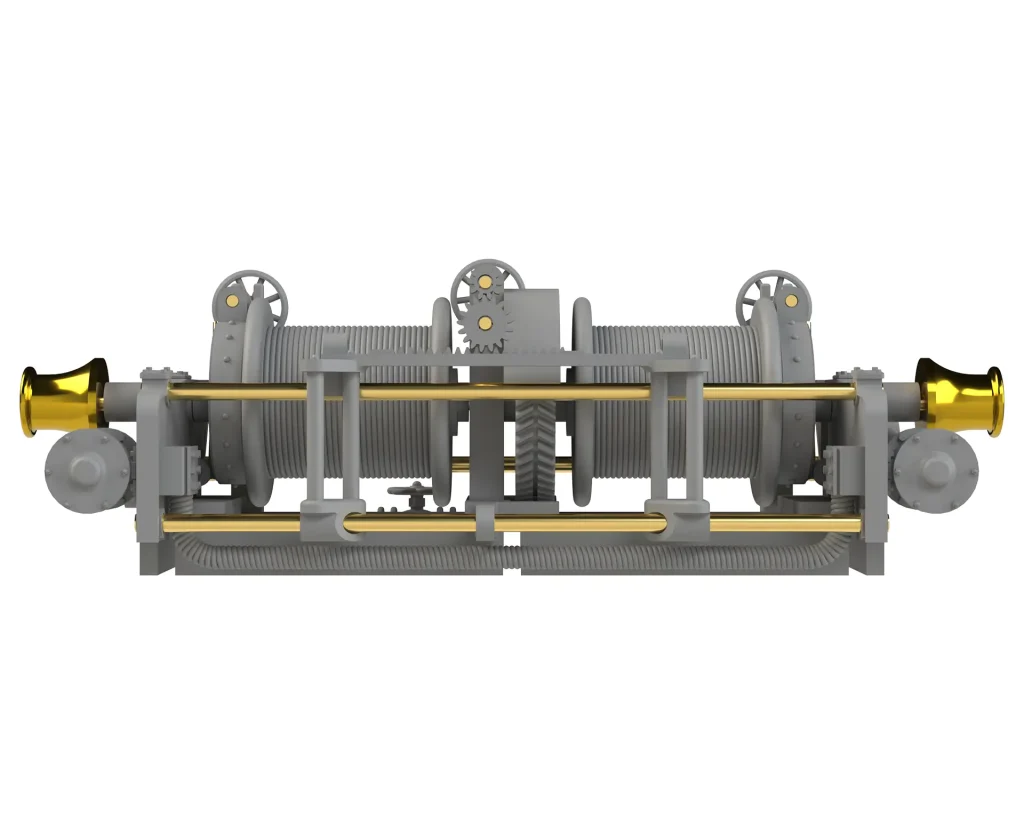

4320022 Side Profile

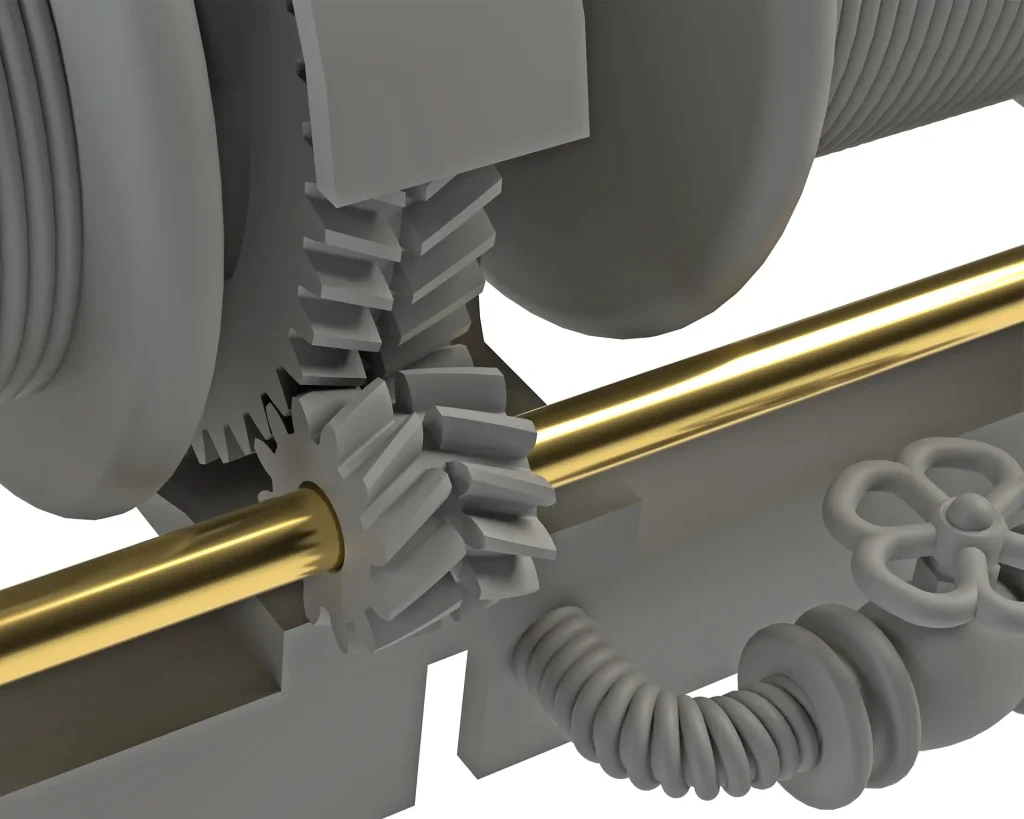

4320022 Meshing Herringbone Gears

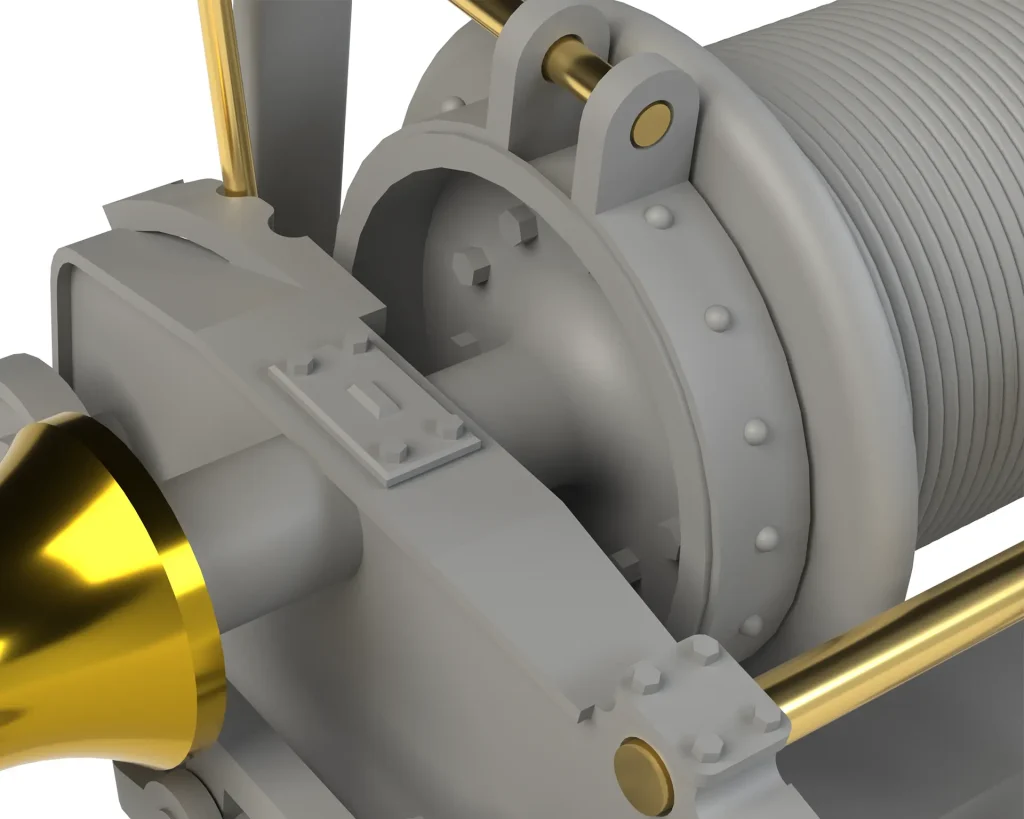

4320022 Brake Detail

As with all assemblies from ShipShapeFittings the breakdown into multiple components allows for greater fidelity and ease of painting for a more satisfying modelling experience.
Before assembly each component can be painted to match your model colours; the possibilities are endless, below is just one potential paint scheme.

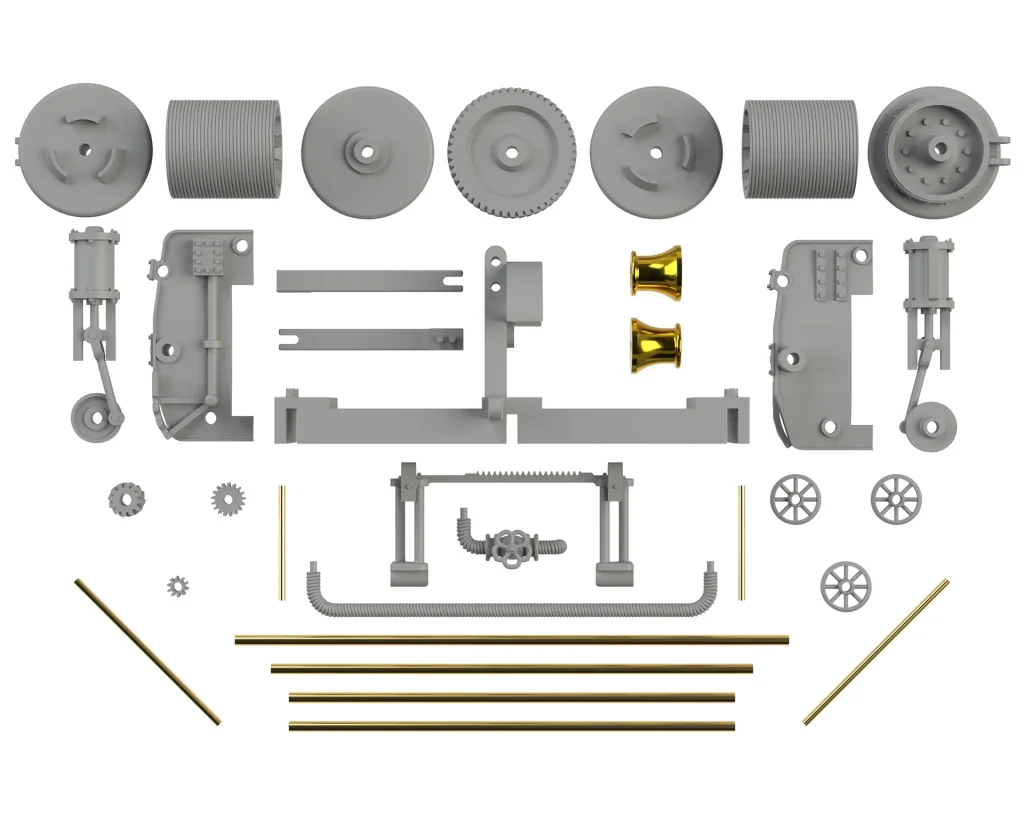

4320022 Component Parts

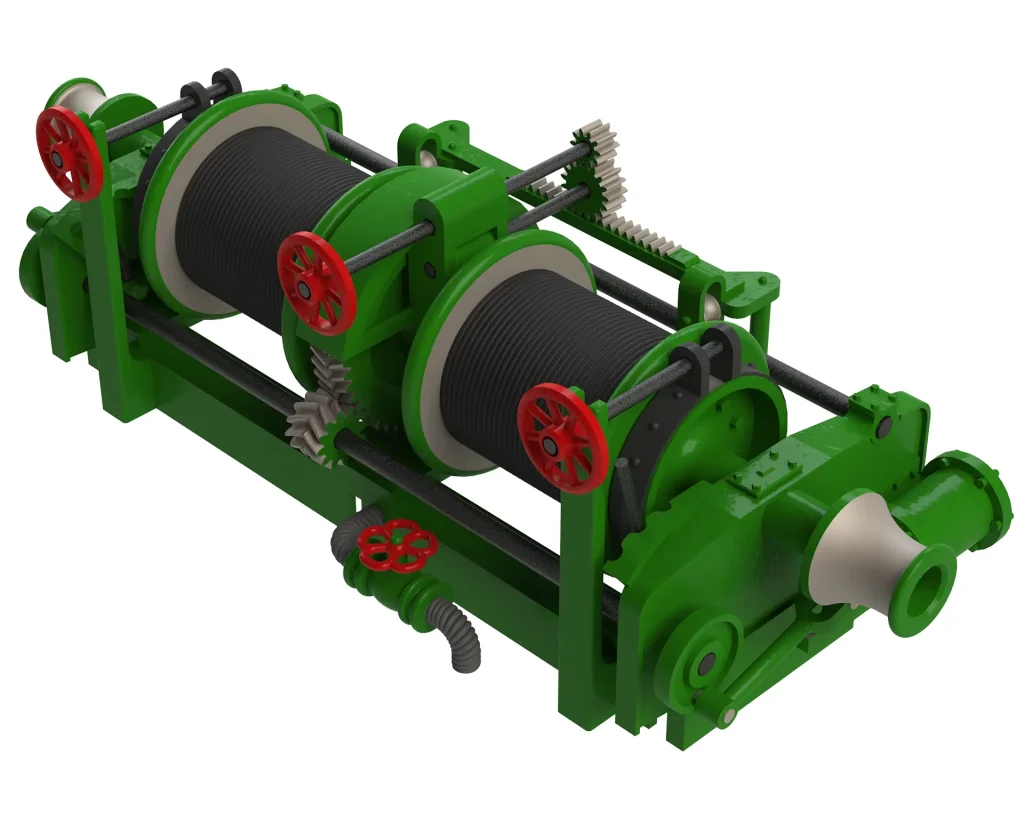

4320022 Painted Forward View

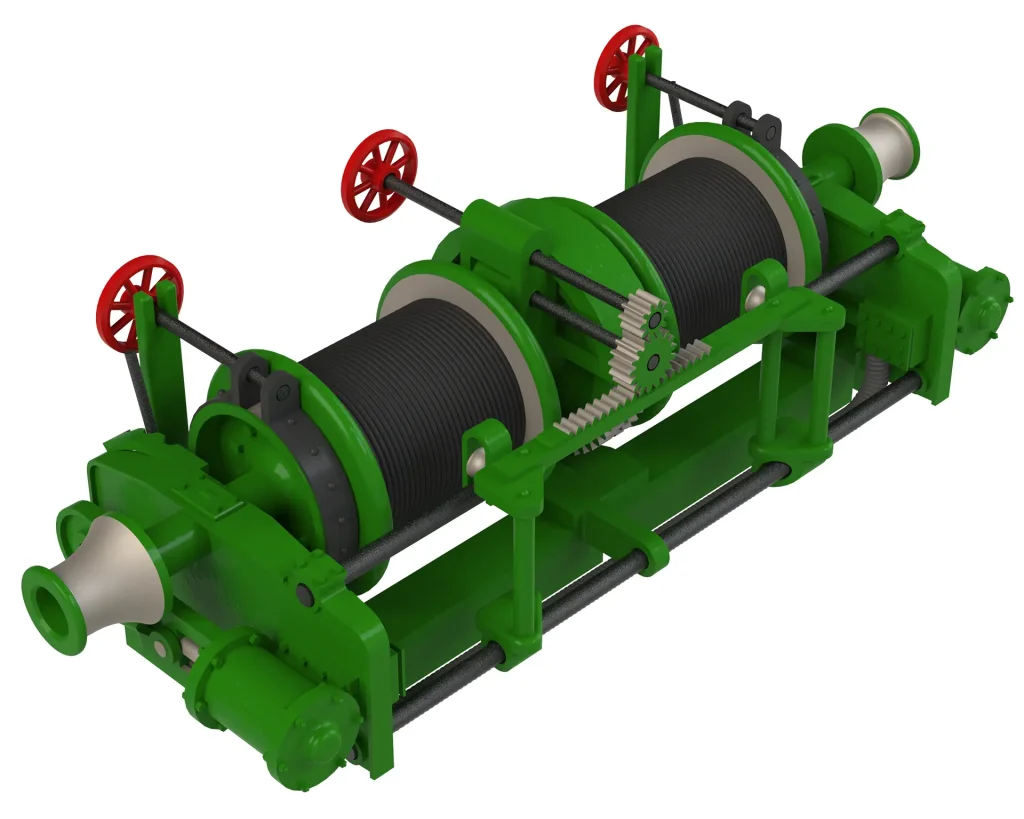

4320022 Painted After View
Featuring the following components:
  • Resin Drum Ends x2
  • Resin Drum Brakes x2
  • Resin Drum Coils x2
  • Resin LH Frame Side x1
  • Resin RH Frame Side x1
  • Resin Frame Base x1
  • Resin Insulation Wrapped Steam Pipe x1
  • Resin Herringbone Drive Gear x1
  • Turned Brass Warping Drums x2
  • Resin Roller Fairlead Assembly x1
  • Resin Herringbone Pinion Gear x1
  • Resin Steam Cylinders x2
  • Resin Idle Gear x1
  • Resin Round Control Handles x3
  • Resin Pinion Gear x1
  • Resin Brake Handle Supports x2
  • Resin Steam Inlet Valve x1
  • Various Brass Rods as Necessary
  • A4 Step by Step Instruction Manual
